Onemake Undermount Soft Close Drawer Slides with Rear Mount Brackets, 3D Locking Device with Metal Base, 100 Lbs Full Extension, Concealed Bottom Mount Rails Runners for Face Frame (18 Inch, 1 Pair)
US$61.18
Arrives as soon as ✓ Free shipping over $200Description
Product Details Color: Satin Nickel Mounting Type: Under Mount Included Components: 3D Rear Mount Bracket × 1 Pair, Drawer Slide × 1 Pair, Instruction Manual × 1, Level × 1, rear hook with prot...
Delivery & Returns
Free shipping $200+
Orders of $200 or more ship free. No code needed.
Reviews
Flintby
You might also like
Mensarix
Black Front Door Handle and Deadbolt Set with Crystal Door knob
US$107.98
Alffun
4 Pack T Post Timber Frame Brackets, 14"x10" T Flat Mending Plate
US$59.38
NEODROP
NEODROP 2-Pack 8 Inch Countertop Support Brackets, Heavy Duty L Brackets for Quartz/Wood/Laminate/Granite Countertops | 3/8" Thick Metal Steel | Frosted Black Powder Coated
US$50.38
Fastener Depot
5/8" x 10" (25 Sets) Hot Dipped Galvanized Carriage Bolt Kit for Exterior Use, Commerical Grade A 307, Includes USS Flat Washers (25 pcs) and Hex Nuts (25 pcs), 6" of Thread - by Fastener Depot
US$156.40
Hillman
Hillman 240156 Carriage Bolt, 3/8 x 2-Inch, Steel, Zinc-Plated, Silver, 100-Pack
US$56.23
HISAFE
Grade 1 Commercial Door Closer, Heavy Duty Auto Hydraulic Closer
US$233.98
Oregon
Oregon Chainsaw Chain, 3/8" LP Pitch, .050" Gauge, 100-Foot Reel
US$672.70
VoTwoofv
Pergola Flat Brackets 10" x 10",L-Shape Straight Joining Brackets for 4 x 4 or 6 x 6 Lumber,Heavy Duty Mending Plate for Gazebo,Porch,Truss Framing,Log Cabins - 4Pack
US$62.98
Hoteam
Hoteam Set of 12 Industrial Pipe Shelf Brackets Black Iron Metal Wall Mounted DIY Shelving Rustic Pipe Wall Bracket Hanging Brackets for Floating Shelves Clothing,Hardware Included(12 Inch)
US$89.98
80/20
8020, 4332, 15 Series, 2 Hole Aluminum Inside Corner Gusset L Bracket for 80/20 Extruded Aluminum Extrusion Heavy Duty Angle Bracket (25, Clear Anodize)
US$377.91
Hillman
Hillman Sleeve Anchors, 1/2in x 3in, 25 Pack, Zinc
US$85.19
TFTICFH
35kN UIAA Certified Heavy Duty Stainless Steel Climbing Bolt Hangers & Expansion Bolts Set, M10, Silver, 5pc
US$61.18
More options
Product Details
- Color: Satin Nickel
- Mounting Type: Under Mount

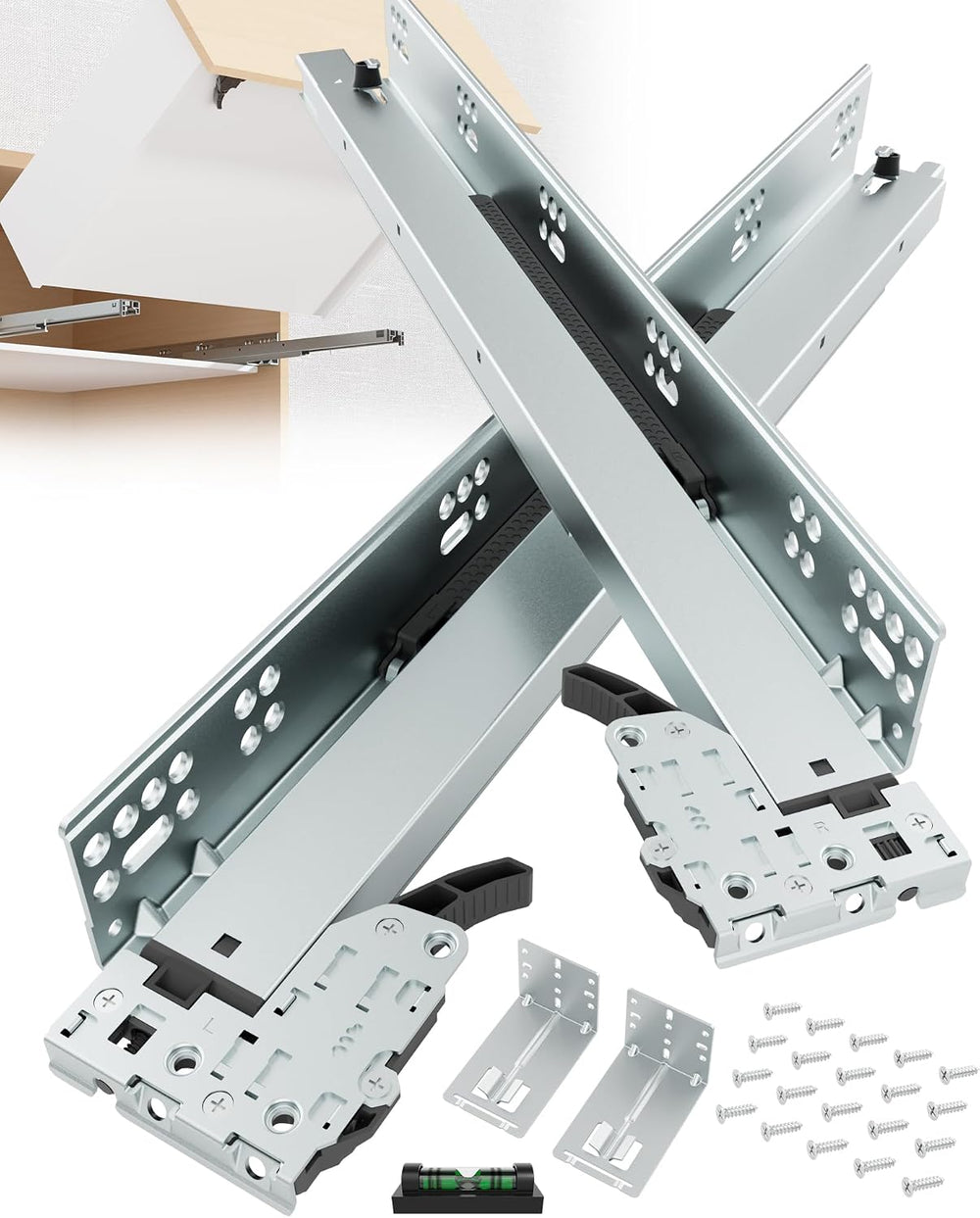

- Included Components: 3D Rear Mount Bracket × 1 Pair, Drawer Slide × 1 Pair, Instruction Manual × 1, Level × 1, rear hook with protective gasket × 1, mounting screws × 20, Locking Device with Metal Base × 1 Pair
- Number of Items: 1
- Unit Count: 1 Count
- Model Number: B2603
- Material Type: Zinc
- Item Dimensions L x W x Thickness: 18"L x 1.15"W x 0.07"Th
- Finish Types: Steel
- Maximum Weight Capacity: 100 pounds
- Drawer Type: Under Mounted Slide
About this item
- Soft Close Mechanism: This undermount slide features a hydraulic soft-close system that gently pulls your drawer shut within the last few inches. No more loud bangs or finger pinching. It creates a quiet, controlled closing action every time, adding a premium feel to your your face frame cabinet
- Full Extension & 100 LB Load Capacity: The concealed rails extend fully to let you access every corner of the drawer, while supporting up to 100 lbs. Sturdy construction distributes weight evenly, keeping drawers stable even when loaded with heavy kitchenware or office supplies

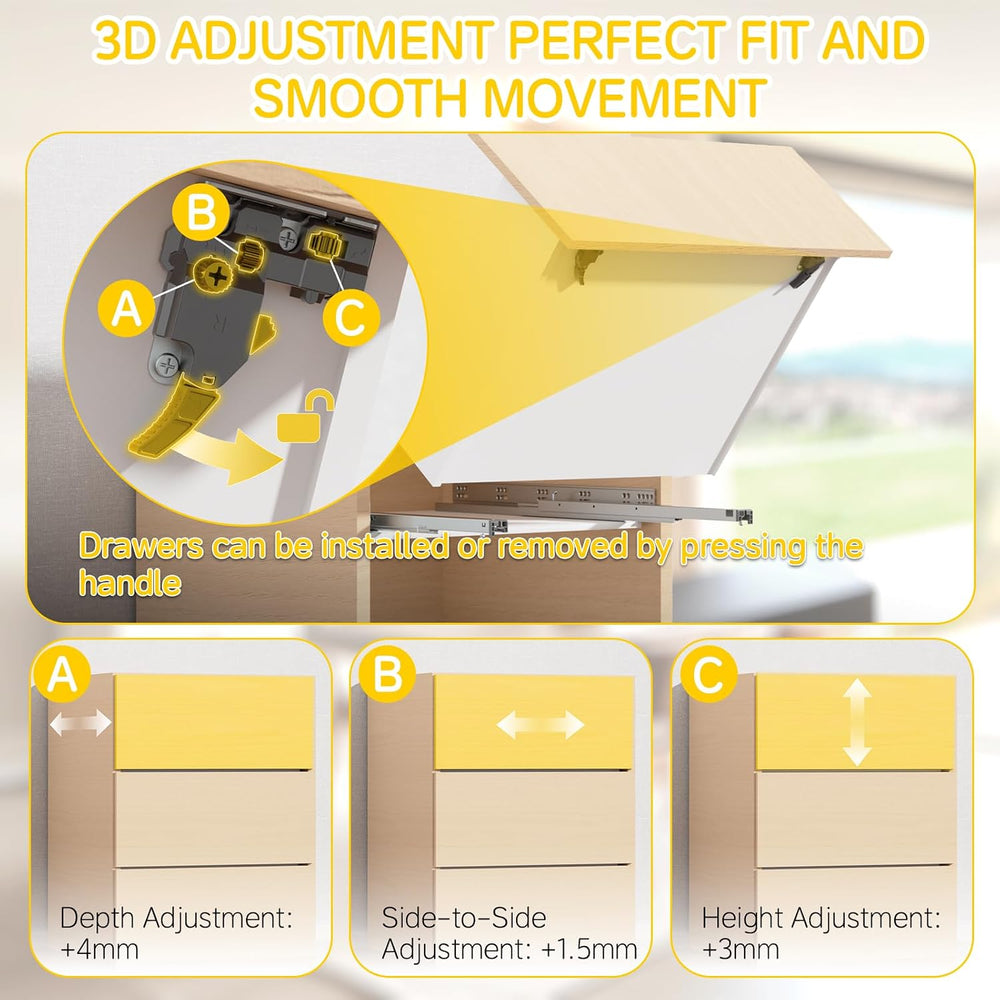

- 3D Adjustable Design: The 3D adjustable design lets you fine-tune the slide position vertically, horizontally, and depth-wise. This flexibility compensates for imperfect cabinet construction, ensuring a aligned drawer front even on face frame cabinets without frustration
- Easy Installation: This lock device features a premium metal base that resists damage and ensures long-term stable operation. It creates a connection between the slide rail and the cabinet, It connects the slide rail to the cabinet, allowing for easy drawer removal and installation. The included level helps achieve precise horizontal placement, reducing drawer jamming and poor sliding while lowering installation difficulty
- Package Includes: Each set includes 1 pairs of slides (includes one left and one right slide), rear metal mounting brackets, 3D adjustable locking devices with metal base, rear hook with protective gasket, level, Instruction manual and 20 mounting screws
